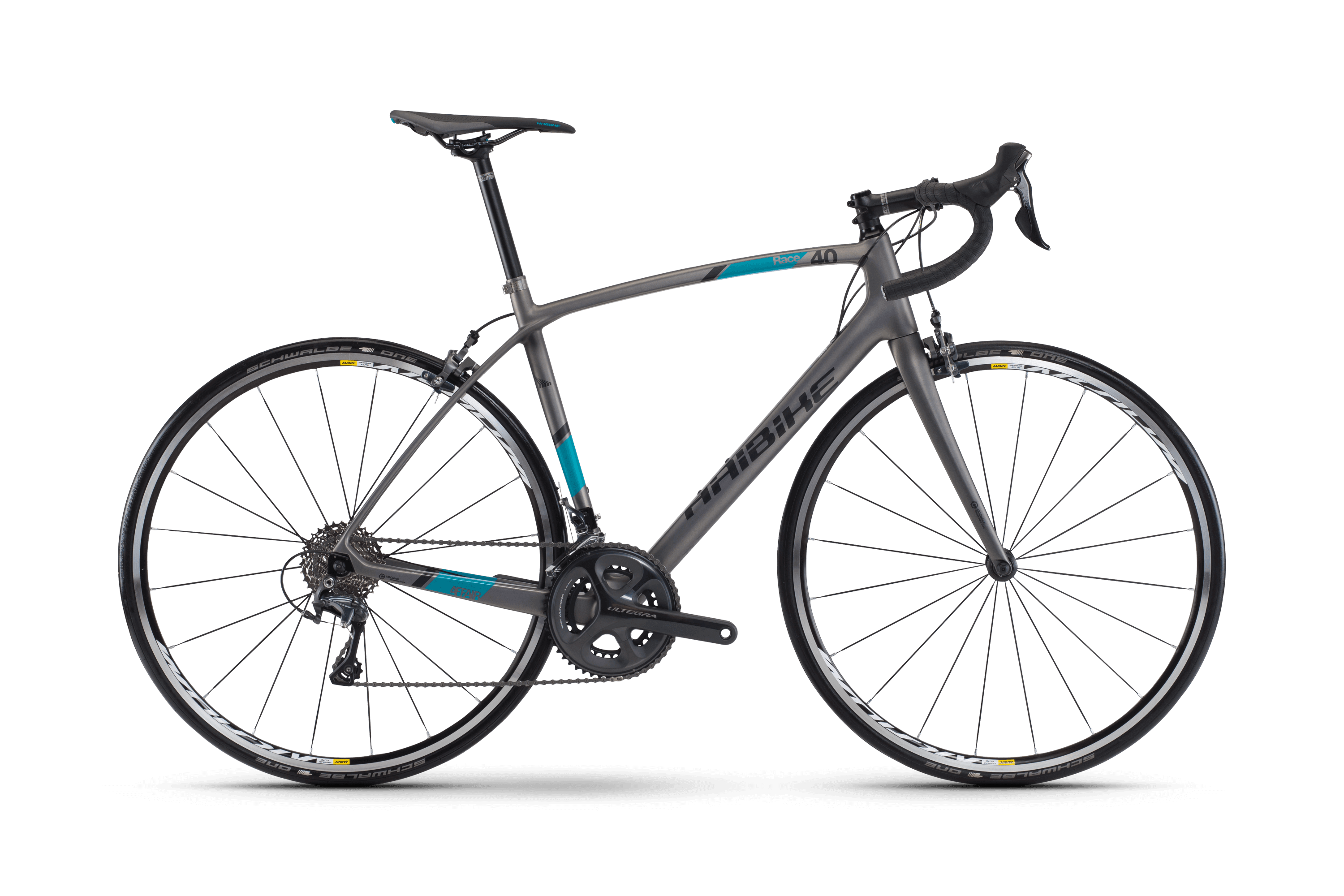

Affair Race 4.0 Pris: 19900 KR
With a newly designed, extremely light carbon frame, the Affair will go any distance. The frame weighs a paltry 840 grams, the front fork weighs a light 330 g and is one particular technical highlight. Innovative ideas also come to the fore when you look at the seat posts, cable routing & rear brake. The dynamic design of the racing bike is topped off by its sporty decals.
Racing dynamic
Smooth balanced riding, maximum comfort and a relaxed seating position: The new Affair convinces through its outstanding racing dynamic.For the highest possible stiffness the classic tapered steerer has been increased from 1 “ to 1¼“ on top
and from 1¼‘‘ to 1½‘‘ on bottom. Reverse Dropouts (RDOs) allow for a particular fork design that noticeably improves comfort without loosing stiffness and steering precision. New seat post, a variable hanger and variable cable inlets also come into play here.A further particularity is the rear break: Being directly mounted to the chain stays means that it offers best breaking power and a clear look. The replaceable chain keeper – a chain catcher behind the crank – protects frame and rider from a dangerous chain suck.
Racing dynamic
Smooth balanced riding, maximum comfort and a relaxed seating position: The new Affair convinces through its outstanding racing dynamic.For the highest possible stiffness the classic tapered steerer has been increased from 1 “ to 1¼“ on top
and from 1¼‘‘ to 1½‘‘ on bottom. Reverse Dropouts (RDOs) allow for a particular fork design that noticeably improves comfort without loosing stiffness and steering precision. New seat post, a variable hanger and variable cable inlets also come into play here.A further particularity is the rear break: Being directly mounted to the chain stays means that it offers best breaking power and a clear look. The replaceable chain keeper – a chain catcher behind the crank – protects frame and rider from a dangerous chain suck.
Affair Race 4.0
19.900,00 kr
Fork
| Haibike full carbon, carbon steerer tube 1 1/8″ – 1 1/4″ tapered, quick release |
Front derailleur
|
Rear derailleur
| Ultegra 6800, 22-speed, Shimano |
Shiftlever
| Shimano Ultegra 6800, shift / brake lever combination |
Crankset
| Shimano Ultegra 6800, aluminium, 34-50 teeth |
Bottom bracket
| Shimano BB71, Hollowtech II |
Sprocket
| Shimano 105 5800, 11-32 teeth |
Chain
| Sram PC1110 |
Brake lever
| Shimano Ultegra 6800, carbon |
Brake (front)
| Shimano Ultegra 6800, aluminium |
Brake (rear)
| Shimano Ultegra 6800, aluminium |
Tires
| Schwalbe One Falt, 25-622 |
Wheelset
| Mavic Aksium Elite |
Handlebar
| Haibike Components TheBar ++ Road |
Grips
| Handlebar tape Soft Grip |
Stem
| Haibike Components TheStem ++, A-Head, Bar bore: 31.8mm, 6˚ |
Headset
| A-Head Alloy Tapered |
Saddle
| Haibike Components TheSaddle Road ++ |
Seatpost
| Haibike Components TheSeatpost ++, Patent, 27.2mm |
Pedals
| w/o |
permissible total weight
| 120 kg |
Frame
| carbon, Tapered Head Tube, UD-Monocoque, quick-release 5 x 130mm, Race brake |
total weight
| 7,8 |
Race
| Frame hight | S 46 cm | M 49 cm | ML52cm | L 55 cm | XL 58 cm | |
| top tube – horizontal | 535 mm | 550 mm | 565 mm | 580 mm | 595 mm | |
| Head tube length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm | |
| Head tube angle | 73 ° | 73.25 ° | 73.5 ° | 73.75 ° | 74 ° | |
| Seat tube angle | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° | |
| Rear end length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | |
| Wheel base | 975 mm | 985 mm | 995 mm | 1005 mm | 1014 mm | |
| Wheel size | 28 ” | 28 ” | 28 ” | 28 ” | 28 ” | |
| 170 | 172.5 | 172.5 | 172.5 | 175 | ||
| 400 | 420 | 420 | 440 | 440 | ||
| 80 | 80 | 100 | 100 | 100 | ||
| 386 mm | 392 mm | 399 mm | 405 mm | 411 mm | ||
| 521 mm | 541 mm | 561 mm | 581 mm | 601 mm | ||
| 375 mm | 375 mm | 375 mm | 375 mm | 375 mm | ||
| fork bend | 45 mm | 45 mm | 45 mm | 45 mm | 45 m |
